Rod system wall holders ATK 601
  • Product Picture: "fischer ATK601 Set E-14/230-T33/80/3 A4"

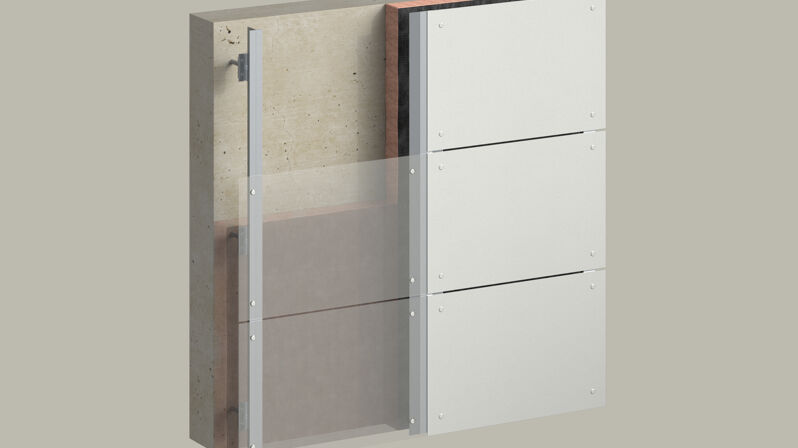

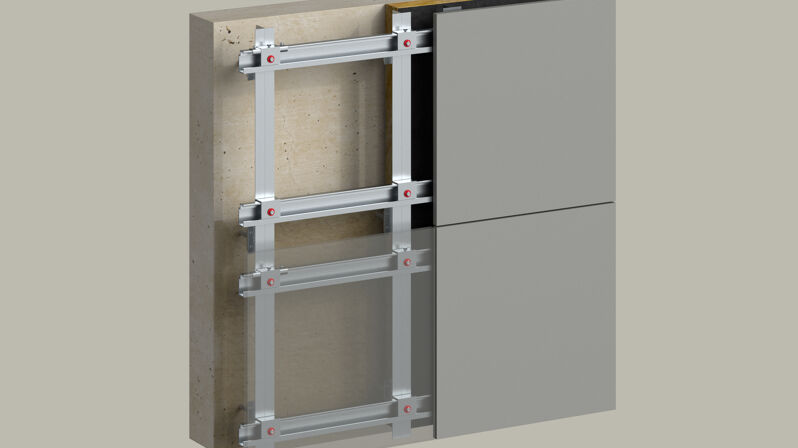

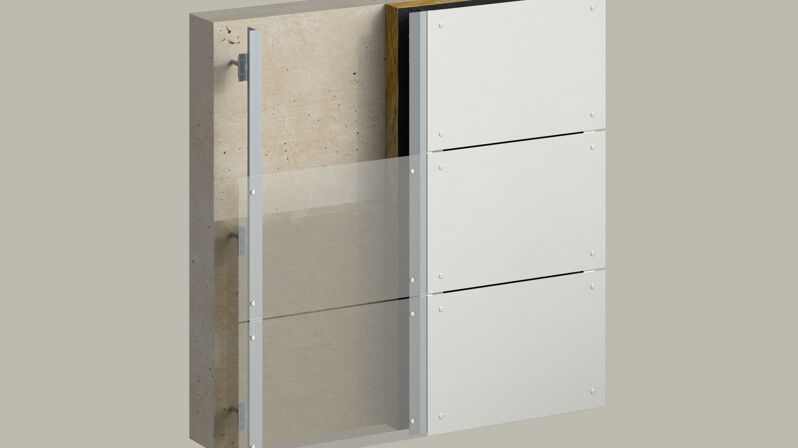

  • Application Picture
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
    • Application Picture
      Art.-No. 559376

      fischer ATK601 Set E-14/230-T33/80/3 A4

      Product variants
      Download of image data
      Top Features
      • Absorption and transfer of the occurring wind and dead loads of the façade system.
      • Compensation of construction tolerances possible.
      • Installation with two different anchoring depths possible.
      • Lengths from 70 - 330mm, depending on anchoring depth.

      The advantages / Product description

      Fixed/sliding point bracket set ATK 601 for push-through installation as rod-system.
      Advantages
      • Enables retrofitting of ventilated rainscreen façades.
      • By means of the push-through and stand-off installation, the wall holder can also be used in already insulated substrates.
      • Applicable for horizontal and vertical systems.
      • The passive house certification guarantees sustainable and energy-efficient fixing.
      • Different load levels are applicable through multiple anchorage depths.
      The ATK 106 SZ 20 Z-profile is a part of the BWM subframe system ATK 106 SZ 20 and is used in combination with the horizontal S-profile of the system in the façade surface. In addition, it is used for the upper horizontal closure to the window sill and parapet. The profiles are available in 6 m length as standard.
      Properties
      • Anchor: Polyamid and stainless steel or zinc-plated steel
      • Attachment parts: Aluminum (e.g. EN AW 6063) and stainless steel

      Application and approval

      Applications
      • As a wall holder set for renovating existing façades
      • Consisting of a frame fixing anchor, as well as an attachment part and a T-piece
      • For load transfer into the building substrate of subframe systems in ventilated rainscreen façades
      Building materials
      • Vertically perforated brick
      • Aerated concrete
      • Hollow blocks made from lightweight concrete
      • Perforated sand-lime brick
      • Solid block made from lightweight and normal weight concrete
      • Solid brick
      • Solid sand-lime brick
      • Concrete ≥ C12/15
      You can find detailed information on building materials in the registration document.
      Approvals
      • DoP: BWM-LE-005
      • DoP: BWM-LE-006
      • DoP: BWM-LE-007
      • DoP: BWM-LE-008
      • 1281fa03

      Assembly instruction

      Functioning
      • Vertical load transfer from the subframe system into the building substrate
      • Renovation of existing façades
      • Absorption of loads through the connection to the vertical profiles
      Installation FRH - ATK601
      1 / 7
      • 1
        Installation FRH - ATK601
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7

      Technical data

      Length 33 mm
      Height (
      H
      )      		60 mm
      Hole-ø (
      D
      )      		5,1 mm
      Length 220 / 200 mm
      System —
      Contents 50 x SXRL 14 T R, 50 x base plate, 50 x T-console, 100 x rivet
      Amount 1 St.
      GTIN (EAN-Code) 4048962420067

      Documents for download

      • ETAs and DoPs
      • Approvals and Certificates
      DOP - Declaration of Performance
      pdf, DoP: BWM-LE-005
      Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps)
      Created on 05/08/2024
      DOP - Declaration of Performance
      pdf, DoP: BWM-LE-006
      Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps)
      Created on 05/08/2024
      DOP - Declaration of Performance
      pdf, DoP: BWM-LE-007
      Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps)
      Created on 05/08/2024
      DOP - Declaration of Performance
      pdf, DoP: BWM-LE-008
      Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps)
      Created on 05/08/2024
