Art.-No. 94760

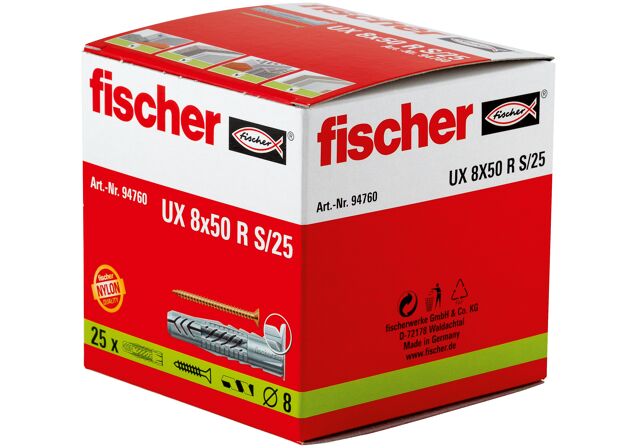

fischer Universal plug UX 8 x 50 R S/25 with rim and screw

Name: fischer Universal plug UX 8 x 50 R S/25 with rim and screw
Brand: fischer

Product variants

Download of image data

Top Features

Plug holds in all building materials.
Plug expands in solid building materials.
Maximum hold in solid and hollow building materials due to knotting.
Optimum screw guidance due to slanting connection bridges.
With the appropriate screw for maximum hold.

The universal nylon plug with rim and with screw for all building materials.

Advantages

The universal operating principle (knotting or expanding) allows for use in all solid, hollow and board building materials. Thus the UX is the correct choice for unknown base materials.
The UX's angled connection ridges allow for optimum screw guidance. Serrated anti-rotation locks prevent rotation in the drill hole. This guarantees the greatest possible installation safety.
Fixing sets with screws provide the right solution for all applications.

The fischer universal fixing UX is a plastic fixing made of high-quality nylon. The fischer universal fixing expands in solid building materials and knots in hollow building materials for maximum hold. For this reason the fischer UX is always the correct choice - even with unknown building materials. The edge prevents slippage during assembly.

Applications

Pictures
Lighting
Towel rails
Mirror cabinets
TV consoles

Building materials

Concrete
Gypsum plasterboard and gypsum fibreboards
Vertically perforated brick
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete
Perforated sand-lime brick
Solid sand-lime brick
Natural stone
Aerated concrete
Chipboard
Solid panel made from gypsum
Solid brick made from lightweight concrete
Solid brick

You can find detailed information on building materials in the registration document.

Functioning

The UX with rim is suitable for pre-positioned installation.
Turning in the screw causes the UX to expand in the solid building material and to knot within the cavity.
The required screw length is given by the plug length + fixture thickness + 1 x screw diameter.
Suitable for wood and chipboard screws, as well as stud screws.
In the case of board building materials, the threadless part of the screw must not be longer than the fixture, and the UX with rim is to be used.
The edge distance must be at least one plug length.

Installation UX

1 / 6

Drill diameter ( d₀ )	8 mm
Min. drill hole depth ( h₁ )	70 mm
Min. panel thickness ( d_p )	12,5 mm
Anchor length ( l )	50 mm
Min. bolt penetration ( l_E,min )	55 mm
Wood and chipboard screws ( d_s )	5.0 x 65 mm
Max. fixture thickness ( t _fix )	10 mm
Contents	50 x plug UX 8 x 50 R (with collar)
Amount	25 St.
Packaging	Folding box
GTIN (EAN-Code)	4006209947609
